QuickApi

当前文档因为时间关系,不是很完善,后续有时间和精力会进一步补充~~

定义Request

如下定义一些请求对象,涉及到绑定和验证规则,可以参考:数据绑定数据验证

public class HelloApiRequest : BaseRequest<HelloApiRequest>
{
    [Description("Name Desc")]
    public string? Name { get; set; }

    /// <summary>
    /// FromQuery特性绑定字段
    /// </summary>
    [FromQuery("q")]
    public string? Q { get; set; }
    public HelloApiRequest()
    {
        RuleFor(x => x.Name).NotNull().Length(5, 10);
    }
}

/// <summary>
/// 上传文件FileUploadRequest
/// </summary>
public class FileUploadRequest : BaseRequest<FileUploadRequest>
{
    public IFormFile? File { get; set; }

    public FileUploadRequest()
    {
        RuleFor(x => x.File).NotNull();
    }
}

/// <summary>
/// 模拟自定义绑定的Request
/// </summary>
public class CustomApiRequest : BaseRequest<CustomApiRequest>
{
    public string? Name { get; set; }

    public CustomApiRequest()
    {
        RuleFor(x => x.Name).NotNull().Length(5, 10);
    }
}
/// <summary>
/// 标记FromBody,表示这个请求对象是FromBody的
/// </summary>
[FromBody]
public class FromBodyRequest : BaseRequest<FromBodyRequest>
{
    public int Id { get; set; }
    public string? Name { get; set; }

    public FromBodyRequest()
    {
        RuleFor(x => x.Id).InclusiveBetween(1, 100);//必须1~100
    }
}
/// <summary>
/// 自定义的绑定器
/// </summary>
public class CustomApiRequestBinder : IReqBinder<CustomApiRequest>
{
    public static async ValueTask<CustomApiRequest> BindAsync(HttpContext context,ParameterInfo parameter = null)
    {
        var request = new CustomApiRequest
        {
            Name = context.Request.Query["c"]
        };
        await Task.CompletedTask;
        return request;
    }
}

public class HelloApiResponse
{
    public string? Message { get; set; }
}

定义QuickApi

Api可以只是服务,你只需要标注特性JustAsService ,另外Api都必须标注特性QuickApi() 如果涉及到OpenApi相关的参数,你可以标注OpenApiMetadata

/// <summary>
/// get ~/admin/index
/// </summary>
[QuickApi("index", Group = "admin", Verbs = Verb.GET | Verb.POST, Policy = "admin")]
public class NeedAuthApi : BaseQuickApi
{
    public override IResult Execute(EmptyRequest request)
    {
        return Results.Ok();
    }
}

/// <summary>
/// get ~/hello/world/{name}
/// </summary>
[QuickApi("world/{name}", Group = "hello", Verbs = Verb.GET | Verb.POST)]
public class HelloApi : BaseQuickApi<HelloApiRequest, HelloApiResponse>
{
    private readonly HelloService _service;
    private readonly IHttpContextAccessor _httpContextAccessor;

    public HelloApi(HelloService service,IHttpContextAccessor httpContextAccessor)
    {
        _service = service;
        _httpContextAccessor = httpContextAccessor;
    }

    public override HelloApiResponse Execute(HelloApiRequest request)
    {
        var hello = _service.Hello($"hello world {_httpContextAccessor.HttpContext!.Request.Path} !");
        return new HelloApiResponse{ Message = hello };
    }
}

/// <summary>
/// get ~/custom?c=11112222
/// </summary>
[QuickApi("custom", Verbs = Verb.GET)]
public class CustomApi : BaseQuickApi<CustomApiRequest>
{
    public CustomApi()
    {
        //自定义绑定器
        UseReqBinder<CustomApiRequestBinder>();
    }

    public override async ValueTask<IResult> ExecuteAsync(CustomApiRequest request)
    {
        await Task.CompletedTask;
        Console.WriteLine($"获取自定义的 CustomApi:,从querystring:c绑定,{request.Name}");
        return Results.Ok();
    }

    /// <summary>
    /// 提供minimal扩展
    /// </summary>
    /// <param name="builder"></param>
    /// <returns></returns>
    public override RouteHandlerBuilder HandlerBuilder(RouteHandlerBuilder builder)
    {
        //自定义描述
        builder.WithOpenApi(operation => new(operation)
        {
            Summary = "This is a summary",
            Description = "This is a description"
        });

        //自定义标签
        builder.WithTags("custom");

        //自定义过滤器
        builder.AddEndpointFilter(async (context, next) =>
        {
            Console.WriteLine("自定义过滤器!");
            return await next(context);
        });
        //默认实现了Accepts和Produces
        return base.HandlerBuilder(builder);
        //如果完全自定义直接返回Builder
        //return builder;
        }
}

/// <summary>
/// 上传文件测试
/// 请使用postman & apifox 测试
/// </summary>
[QuickApi("fromfile", Verbs = Verb.POST)]
public class FromFileApi : BaseQuickApi<FileUploadRequest, Results<Ok<string>,BadRequest<string>>>
{
    public override async ValueTask<Results<Ok<string>,BadRequest<string>> ExecuteAsync(FileUploadRequest request)
    {
        //测试上传一个文本文件并读取内容
        if (request.File != null)
        {
            using (var sr = new StreamReader(request.File.OpenReadStream()))
            {
                var content = await sr.ReadToEndAsync();
                return TypedResults.Ok(content);
            }
        }
        return TypedResults.BadRequest("no file");
    }
}

/// <summary>
/// JustAsService 只会被服务发现，不会被注册到路由表
/// </summary>
[QuickApi(""), JustAsService]
public class JustAsService : BaseQuickApi<EmptyRequest, string>
{
    public override async ValueTask<string> ExecuteAsync(EmptyRequest request)
    {
        return "Hello World JustAsService!";
    }
}

提供Group扩展支持

如果你需要对特定分组Group做统一的处理,比如加上Tag标签等,可以实现IQuickApiGroupRouteBuilder接口,如下:

// 当前模拟给所有 Group为空的QuickApi加上 Tag "Def"
public class MyGroupRouteBuilder : IQuickApiGroupRouteBuilder
{
    // 表述Group为空的QuickApi
    public string Group => string.Empty;
    // 执行顺序
    public int Order => 1;
    // 实现Builder方法
    public RouteGroupBuilder Builder(RouteGroupBuilder routeBuilder)
    {
        // 给所有 Group为空的QuickApi加上 Tag "Def"
        routeBuilder.WithTags("Def");
        return routeBuilder;
    }
}

// 最后注册
builder.Services.AddBiwenQuickApiGroupRouteBuilder<MyGroupRouteBuilder>();

Note

RouteGroupBuilder相当强大,你可以在这里做任何你想做的事情,比如加上Tag,Summary 以及缓存,验证等等~~

注入服务

在QuickApi中注册服务,请使用构造函数注入,如下注入服务:IHttpContextAccessor:

[QuickApi("Loginout", Group = "admin")]
[OpenApiMetadata("loginout", "退出登录")]
public class LoginOut : BaseQuickApiWithoutRequest<string>
{
    private readonly IHttpContextAccessor _httpContextAccessor;
    public LoginOut(IHttpContextAccessor httpContextAccessor)
    {
        _httpContextAccessor = httpContextAccessor;
    }
    public override ValueTask<string> ExecuteAsync(EmptyRequest request)
    {
        _httpContextAccessor.HttpContext?.SignOutAsync();
        return new ValueTask<string>("已经退出登录");
    }
}

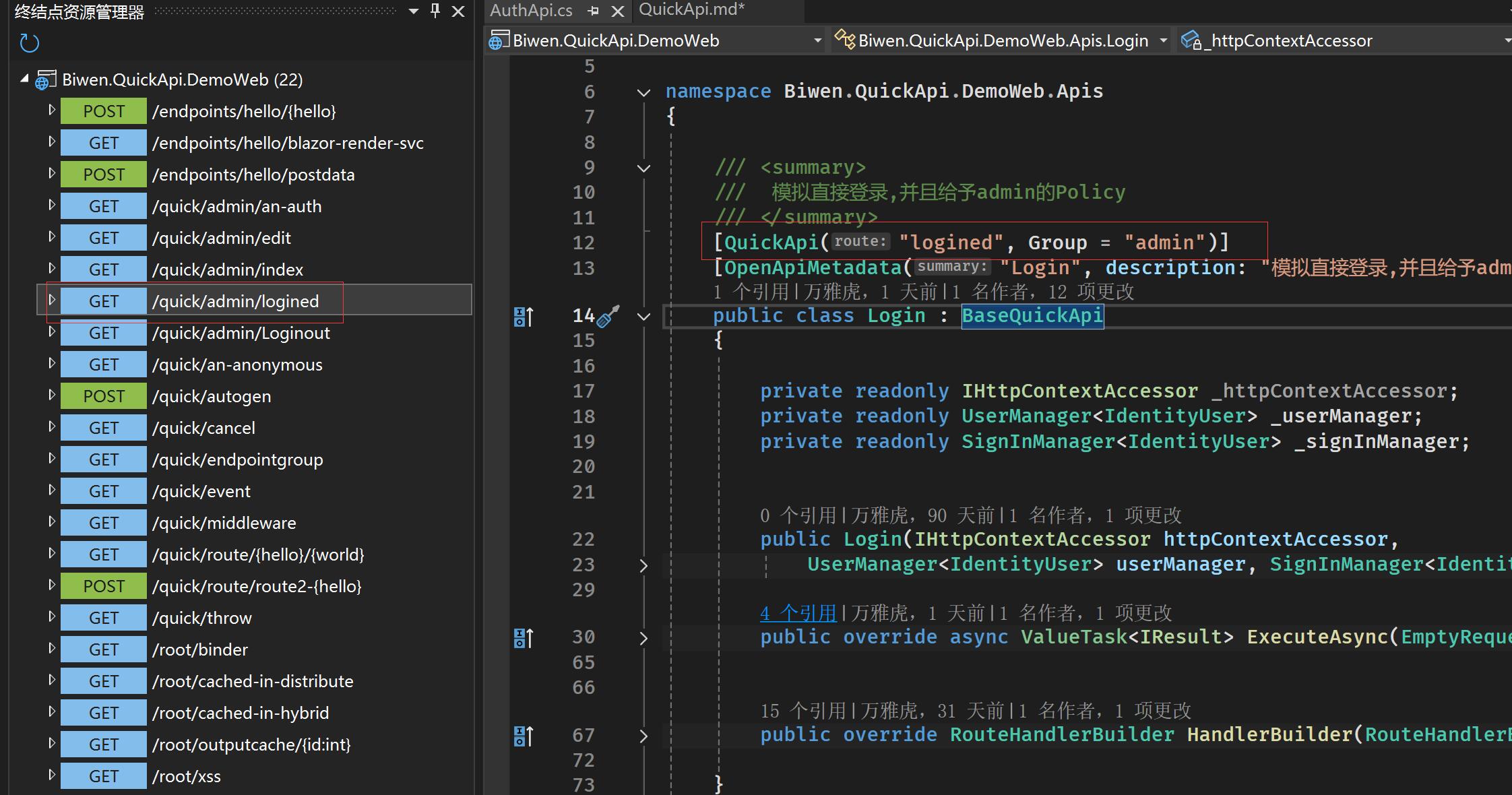

终结点资源管理器

VisualStudio2022+ 提供终结点管理器,你可以很方便的查看定义的QuickApi和QuickEndpoint
endpoint-explorer

预览结果

运行程序访问如下的地址将呈现结果

dotnet run

//直接访问
// GET ~/hello/world/biwen
// GET ~/hello/world/biwen?name=biwen
// POST ~/hello/world/biwen
// GET ~/custom?c=11112222

如果需要在服务中使用QuickApi,可以直接注入,如下代码:

app.MapGet("/fromapi", async (Apis.Hello4Api api) =>
{
    //通过你的方式获取请求对象
    var req = new EmptyRequest();
    //验证请求对象
    var result = req.RealValidator.Validate(req);
    if (!result.IsValid)
    {
        return Results.BadRequest(result.ToDictionary());
    }
    //执行请求
    var x = await api.ExecuteAsync(new EmptyRequest());
    return Results.Ok(x);
});

取消执行

当QuickApi执行时间很长的情况下提供可以撤销的操作,避免长时间等待

[QuickApi("cancel")]
public class CancelApi : BaseQuickApi
{
    public override async ValueTask<IResult> ExecuteAsync(EmptyRequest request, CancellationToken cancellationToken = default)
    {
        var taskJob = Task.Run(async () =>
         {
             //模拟操作需要5秒的长时间业务操作
             await Task.Delay(5000);

             //因为taskCancel线程会在提前调用CancelAsync取消,所以这里根本不会执行!
             return Results.Content("Done!");

         }, CancellationToken.None);

        var taskCancel = Task.Run(async () =>
        {
            //模拟1秒后取消
            await Task.Delay(1000);
            //取消任务
            await CancelAsync();

        }, CancellationToken.None);

        Task.WaitAny([taskJob, taskCancel], cancellationToken: cancellationToken);

        //因为taskCancel会在1秒后调用Cancel取消,所以会抛出TaskCanceledException,
        //因此下面的代码不会执行

        await Task.CompletedTask;
        return Results.Content("cancel api");
    }
}

当前用例请求会返回如下500结果:

{
  "type": "https://tools.ietf.org/html/rfc9110#section-15.6.1",
  "title": "An error occurred while processing your request.",
  "status": 500,
  "detail": "The operation was canceled.",
  "Status": 500,
  "CurrentUser": null,
  "Exception": {
    "message": "The operation was canceled.",
    "stackTrace": "   at System.Threading.CancellationToken.ThrowOperationCanceledException() ..."
  },
  "RequestPath": "/quick/cancel",
  "Method": "GET",
  "QueryString": "",
  "traceId": "00-2ae27a9fd064f19351be88fead3f13a6-c52f626fe9ac486f-00"
}

更多参考 Issues

性能测试

Benchmark测试根据服务器性能结果可能会略有不同,但是大体上QuickApi和MinimalApi差不多. 性能最差的是基于ControllerBase的WebApi

BenchmarkDotNet v0.13.12, Windows 10 (10.0.19045.3570/22H2/2022Update)
11th Gen Intel Core i7-11800H 2.30GHz, 1 CPU, 16 logical and 8 physical cores
.NET SDK 8.0.100
[Host]     : .NET 8.0.0 (8.0.0.100), X64 RyuJIT AVX2 [AttachedDebugger]
Job-WHDDIT : .NET 8.0.0 (8.0.0.100), X64 RyuJIT AVX2

Runtime=.NET 8.0  InvocationCount=2000  IterationCount=10
LaunchCount=1  WarmupCount=1

Method	Mean	Error	StdDev	Median	Ratio	RatioSD	Gen0	Allocated	Alloc Ratio
WebApiCtrl	385.5 μs	357.93 μs	236.75 μs	231.0 μs	1.00	0.00	2.5000	33.5 KB	1.00
MinimalApi	221.2 μs	13.02 μs	6.81 μs	220.9 μs	0.68	0.34	2.0000	24.38 KB	0.73
QuickApi	235.9 μs	22.26 μs	11.65 μs	235.4 μs	0.72	0.34	2.0000	27.59 KB	0.82
